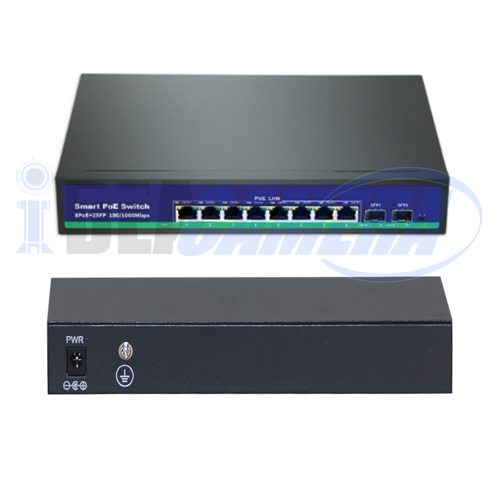

120W 8Ports Standard 8+2 Full Gigabit PoE Switch, Internal Power.

2021-3-11 15:36:56, Visits:
Product Model: G0802GB
FOB Price: US$54-US$57
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS
PDF:

Inquire Now >

Model: G0802GB

Key features:

Support 8*10/100/1000Mpbs RJ45 ports;

Support 2*10/100/1000Mbps SFP uplink ports;

Whole power120W, each port30W;

Transmit distance: 100M;

Power Supply: 120W 52V 2.3A;

1-8 ports support IEEE802.3af/at;

Supports 8K MAC address table depth;

Power priority mechanism, fast and forward, MAC automatic learning and aging;

IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode;

MOQ: 12pcs



Our services:

Offer 2-years product warranties.

Logistics convenient.

Support OEM/ODM.

CCC/CE/FCC Certified.

Strict product quality control.

Lower price.

6-8 working day per order.



Advantages:

Occupied 8 POE power supply RJ45 port, all of 8 RJ45 ports are support IEEE802.3AF/AT standard power supply, each port max. Power reached 30W, whole power reached 120W, can be detected PD electric equipment who obey IEEE802.3AF/AT standard automatically.


Model

G0802GB

Network standard

IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3zIEEE 802.1dIEEE 802.1w

IEEE 802.1s IEEE 802.1QIEEE 802.1pIEEE 802.3xIEEE802.3afIEEE802.3at

PoE port

8 10/100/1000Mbps RJ45 port

2 10/100/1000Mbps SFP uplink port

PoE power supply

8 10/100/1000Mbps RJ45 port Support PoE+Power   supply

Whole power≤120W

Each po≤30W

PoE

connect

1-8 ports support IEEE802.3af/at

Support 1/2+, 3/6- line pair

End Bonding

indicator   light

Each port has a LINK/ACT

POE Status indicator, power indicator for   the whole machine

Performance

Store and forward

Supports 8K MAC address table depth

16Gbps backplane bandwidth

Forwarding Rate

10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

Port Function

Power priority mechanism, fast and   forward, MAC automatic learning and aging

IEEE802.3X Full-duplex and mode and   backpressure for Half-duplex mode

Working Environment

Working temperature-10~-55

Power supply

Each port ≤30W

Whole≤120W

DC 52V 2.3A

Size&weight

1.55KG

270mm×180mm×44mm(L×W×H)
