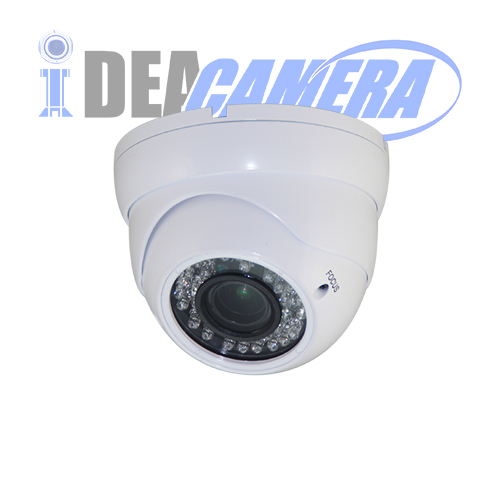

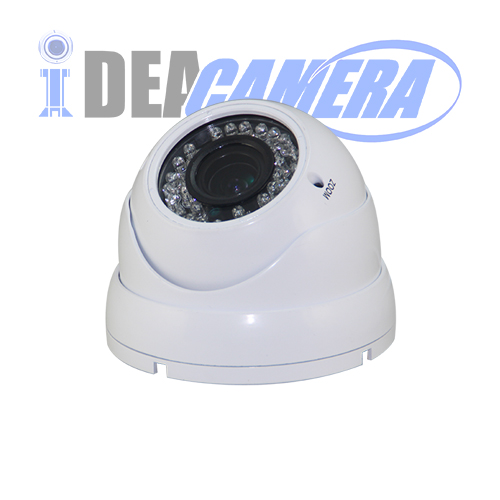

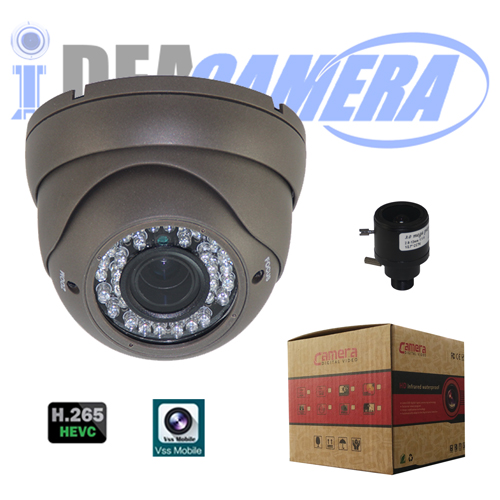

2MP IP Dome Camera,H.265 HD,VSS Mobile App,Sipport Face Detection,P2P,Outdoor use

2019-11-26 15:31:38, Visits:
Product Model: RC-DVM75C-2MPG
FOB Price: US$22.32-US$24.32
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS
PDF:

Inquire Now >

Model: RC-DVM75C-2MPG

Key features:

HD 2.8-12mm Varifocal Lens.

36pieces IR LEDs, 30 meters of IR distance.

White metal dome housing.

Normal network video cable with waterproof sleeve.



Product characteristics:

1/2.9” CMOS Sensor (Hi3516EV200+GC2063).

Support H.264/H.265/H.265+ Video compression.

(VSS Mobile) app for mobile phone, (IMS300) app for computer.

Support all channels face detection by VSS system.

Standard 38*38 single board, Easy to install CCTV Camera.

Support IR-CUT (Day and night auto switch).

Max video resolution: 1920*1080@25/30fps.

Support 1ch audio input, 1ch audio output, realize two-way phonetic dialogue.

Support 1ch alarm input, 1ch alarm output

Support 1 USB reserve interface.

Support 1ch network lamp interface.

Support smart IR, 1ch TTL interface.

Support two-stream technology.

Support 3D noise reduction and digital WDR.

Support private network penetration and cross browser access.



Product Advantages:

Offer 2-years product warranties.

Logistics convenient.

OEM/ODM.

CCC/CE/FCC Certified.

Strict product quality control.

Efficiently working with almost NVR.

Lower price.

6-8 working day per order.



Product applications:

This is the best product of safety field. It and hard disk video recorderscablepower supplydisplayetc. Constitute a complete security system. Tts application is more extensive. Such as homesfactorieshighwaysoffice buildinggardencommunity, or a large public places, etc.


2MP   Economic Single-Boards IP Camera Module

Product   model

RC-DVM75C-2MPG

System   Structure

DSP

Embedded   RTOS, DSP (Hi3516E V200)

Sensor

1/2.9"   CMOS sensor (GC2063)

Video   Encoding

Video Encoding

H.265/

H.264High   Profile/Main Profile/

Base Line   Profile

Maximum Image Output

Main stream1920*1080@25/30fps;   Auxiliary stream optional

Streaming transmission

Two streams

Video Bite rate

32Kbps~8MKbps

Image   Enhancement

Min. illumination

Color0.1Lux@F1.2AGC ON);

black and   white0.01Lux@F1.2AGC ON

Electronic shutter

Auto1/3 to   1/10000

Day/Night switch

color/B&W/Light   sensitive switch/Mixed mode switch

white balance

Auto / Lock   white balance / fluorescent lamp /filament lamp /fluorescent lamp /HM

DNR

2D and 3D   DNR

WDR

Support   DWDR

Video Adjust

Sharpness,   Brightness, Saturation, Contrast, chroma adjustable

image model

Transparent   /real

color pattern

Standard   /gorgeous

Corridor pattern

support

backlight compensation

support

FLC

support

penetrating fog

support

Smart IR

support

Interfaces

Signal interface

one   photosensitive resistance signal interface,

one IR_CUT   drive interface

support   photo resistance signal links to IR-CUT and IR light

ICR driving voltage

5V

Smart IR

One port

Reset interface

One port

Audio interface

One audio   in; One audio out

Alarm interface

One alarm   in; One alarm out

electric zoom interface

One port-Z model   support

TTL interface

One port

Power interface

One DC12V   power input

USB interface

One Port

POE interface

One   Extended Interface

Network light interface

One Port

Network interface

One RJ45   10/100M Port

TF interface

One Port External   USB to TF board

Functions

Motion detection

Multiple   detection zones, variable sensitivity levels

Capture function

JPEG   capture resolution is the max coding resolution

Security

Password   protection and water marker

OSD

Support   Channel Name and Time

storage

Support FTP storage

Smart alarm

Network   abnormal, cover alarm etc.

Mobile client

VSSMOBILE   for both iPhone and Android system phone

Protocol support

TCP/IPUDPHTTPIGMP ICMPDHCPRTP/RTSPDNSDDNSFTPNTPPPPOEUPNPSMTPSNMP

Interface protocol

ONVIF2.6/CGI

General

Power Supply

DC12V

Power Consumption

<1W   (without infrared lamp board)

Lightning Protection

Power,   network, POE all lightning protection,

meets with   standard GB/T17626.5and IEC61000-4-5

IR_CUT pitch

20mm

Size

38*38mmSingle   Board
